Low Pressure Bag Filter Housing

กระบอกกรองชนิดถุงกรอง

Design P. 10kg/cm²      Operating P. 7kg/cm²
Design T. 100˚C           Operating T. 75˚C

Material:SUS304/SUS316/SUS316L
O-ring   :EPDM/VITON/NBR/SILICONE

Surface finished:Acid-washing,Electrolyze and Other unique surface finished.

Accessory: Filter bag, Bag pressing, Bag bracket, Metal float ball



Description

Features

  • Low pressure bag filter housing design could satisfy customers needs
  • Low pressure bag filter housing shell strength calculated by CNS
  • Human easy-using top cover matches with SYS clamp, easy clean  and could change filter bags without using any tools
  • Top cover was sealed with shell body preventing from leaking, its very safe design for low pressure bag filter housing.
  • High intensity basket with firmly structure protects filter bag and extend the life time
  • Adjustable leg could be adjusted based on site pipeline

Applications

  • Water
  • Groundwater
  • Food Industry
  • Beverage Industry
  • Environmental Industries
  • Electronic Industry
  • Machinery oil
  • Electroplating Industry
  • Petrochemical Industry
  • Pool
  • Unique liquid filtration
  • Industrial wastewater treatment

Specifications

กระบอกกรองชนิดถุงกรอง (ประเภทแรงดันต่ำ ไม่เกิน 10kg/cm²)

Model For Bag Size A (mm.) B (mm.) C (mm.) D (mm.) E/(PCD) (mm.) F (mm.) G (mm.) H (mm.) M³/Hr GPM Weight (Kg) Volume (L)
BFL-1 1 (Ø7″x17″) Ø232 550 185 176 Ø323 600 350 Ø171.5 20 90 21 27
BFL-2 2 (Ø7″x32″) Ø232 1005 185 176 Ø323 600 730 Ø171.5 45 200 26 46
BFL-3 3 (Ø4″x8″) Ø180 360 175 150 Ø252 350 200 Ø97.5 4.5 20 14 11
BFL-4 4 (Ø4″x14″) Ø180 495 175 150 Ø252 350 310 Ø97.5 9 45 15 14

***Filter Bag Sizes: No.1:Ø7″x17″ , No.2:Ø7″x32″ , No.3:Ø4″x8″ , No.4:Ø4″x14″

Description of Model No.

BFL 1 4 50 10K SB E 12
1 2 3 4 5 6 7 8

1. BFL :                                                 2. Length of Bag:                                          3. Material :
    Low Pressure Bag Filter Housing              1 = No.1Bag (17″)    2 = No.2Bag (32″)         4 = 304     6 = 316
                                                                3 = No.3Bag (8″)      4 = No.4Bag (14″)         6L = 316L

4. In & Outlet Size :                               5. In & Outlet Type :
15 = 1/2″      20 = 3/4″    25 = 1″              10K = JIS       150P = ANSI         PF = BSPT-F      BF = BSPF-F
40 = 1-1/2″   50  = 2″     65 = 2-1/2″         PN10 = DIN         J = Clamp       NF = NPT-F       PM = BSPT-M                  BM = BSPF-M    NM = NPT-M

 6. In & Outlet  : SS = Side In&Out     SB = Side In & Bottom Out
 7. O-ring Material : E = EPDM  V = Viton  N = NBR   S = Silicone
 8. Interior surface finished :   1 = ACID-Washing 2 = Electrolyze 3 = Polishing
     Exterior surface finished 1 = ACID-Washing 2 = Electrolyze 3 = Polishing

Remark: S6 = Bag Pressing

Accessories:

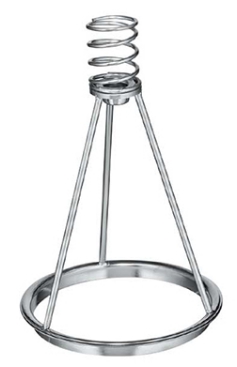

Bag Basket        Bag Pressing
Material : SUS304 SUS316 SUS316L
Size: For Housing No.1 (7″x17″) , No.2 (7″x32″) , No.3 (4″x8″), No.4 (4″x14″)
